Sewerin Glass-fiber Probe Rod for locating PVC and Plastic Pipe, 60m (196') on Reel
Detection of non-metal pipes

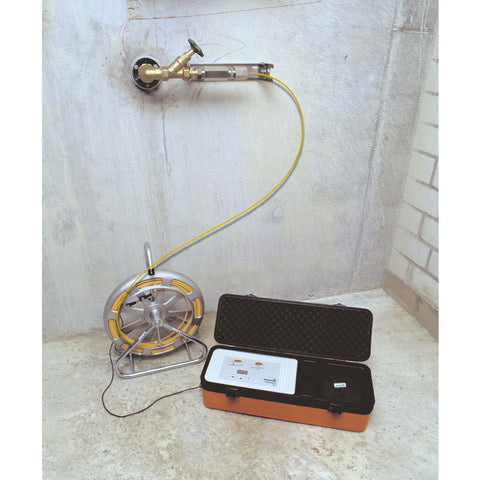

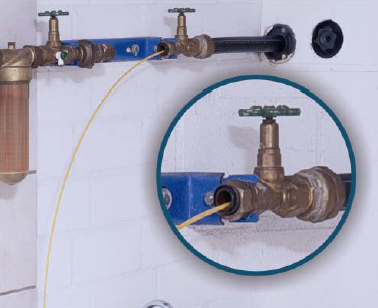

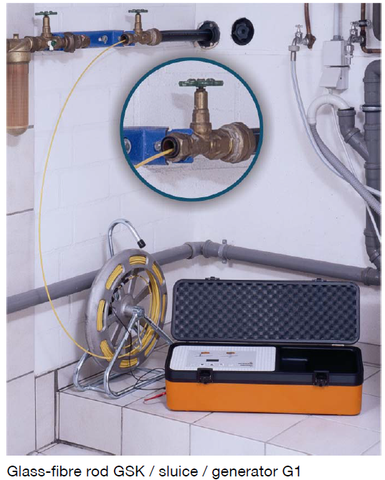

Non-metal pipes can be detected if the glass fibre rod can be inserted into the pipe in question. The rod is equipped with a copper strand so that it can be energized by a pipeline locating system such as FERROPHON® or UtiliTrac® using a generator and then detected using a receiver. In this way, the path of the pipe in question can be determined quickly and exactly to the last meter.
- 60 meter (196 foot) Spool of glass-fiber rod with copper core
- Screw on brass ball end
- Metal Reel
The optional mini pig transmitter is used for precise determination of the end of the glass fibre rod. This small, battery-operated transmitter generates its own field, which is detected precisely by a receiver. The exact depth can also be measured. The mini pig transmitter can also be used without a glass fibre rod. This makes a wide variety of uses with pipeline cleaning pigs, channel cameras, etc. possible!
- Mini-pig Sonde Transmitter
- Sluice fitting
- Spring End
- Pipe & Cable locator transmitters/receivers
- Sonde capable locator for mini-pig transmitter sonde
