3/4" Bevel Gasket for Water Meter Yoke Expansion Connection Wheels

Utility Technologies

  • $1.75

Beveled Water Meter Gasket

For Yoke Expansion Connection Wheel

For Size 3/4", & 5/8" x 3/4" Water Meter

This gasket goes between the expansion wheel and round nose of an expansion wheel for a YOKE type meter setting. When changing out meters in yoke settings the yoke and expansion wheels should be fit with new gaskets to insure a watertight seal.

For inside the expansion wheel of a Yoke type meter setter only

  • EPDM Rubber meets ANSI/NSF-61
  • For 5/8" x 3/4" and full 3/4" Water Meters
  • Approximate Dimensions:

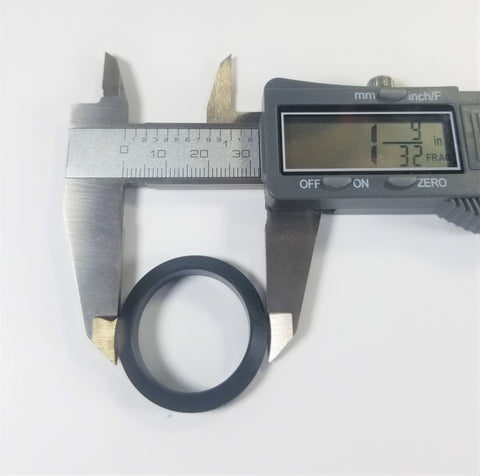

  • Outside Diameter: 1-9/32"

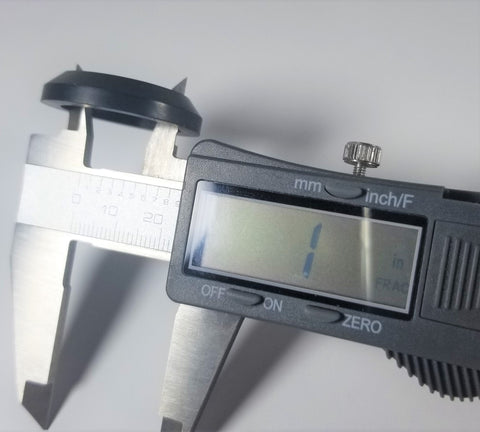

  • Inside Diameter: 1.0"

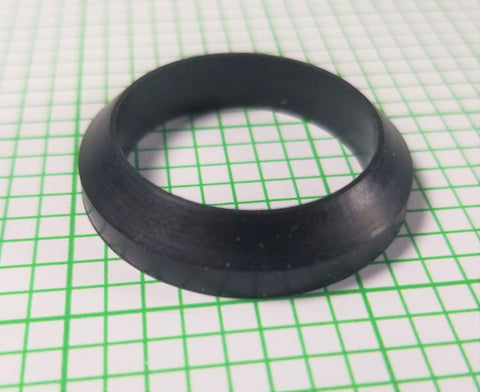

  • Overall Thickness (at I.D.): 1/4" {Bevel is approximately half of the thickness on the outer dimension}

For Expansion Connection Part Number Cross References

  • Ford Meter Box EC-23-NL (Gasket = #GT-33)
  • Mueller H-14234 (3/4") (Gasket = "3/4 seal gasket")
  • A.Y. McDonald 5139-035 (Gasket = "3/4" nose piece gasket)
