Nicor 20" Polymer AMR/AMI Water Meter Box Cover with Countersunk Antenna Holes

Nicor

  • $79.00


Polymer AMR/AMI
Monitor Cover Lid
With Recessed Antenna Holes
Nicor Meter Box Cover
Round Top Lid for iron meter pit ring
for water meters in underground pits

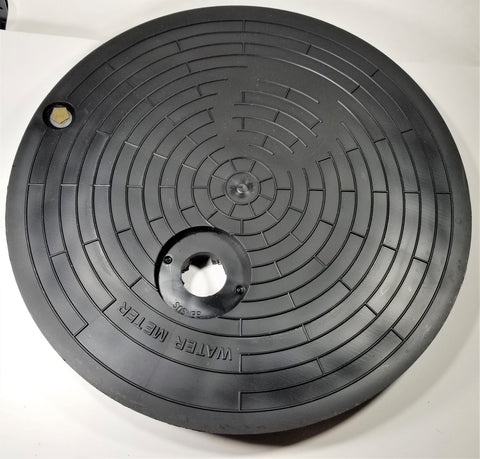

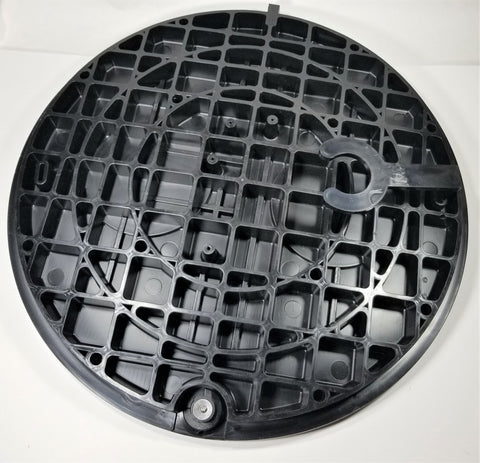

This is a Nicor brand high density plastic meter box lid that fits a Ford Meter Box 20" Monitor Cover Ring (or equal) Normally used for larger water meters. See actual top lid dimensions below. Replaces metal top lids. For replacement of existing lids for better radio reading, upgrading pits, or replacing broken lids.
Variations to select from
  • Sensus Through lid AMR mount with recessed hole
  • Neptune through the lid AMR mount with recessed hole
  • Additional antennas can be installed with under-lid mount U-bracket
  • See solid lid version in our other listings
Polymer lid Features
  • Radio Transparent for Automatic Meter Reading Transmitters
  • Won't Rust
  • No Iron scrap value to attract theft
  • Light weight for shipping
  • Strong H20 traffic rating safe for driveways, sidewalks and lawn vehicles

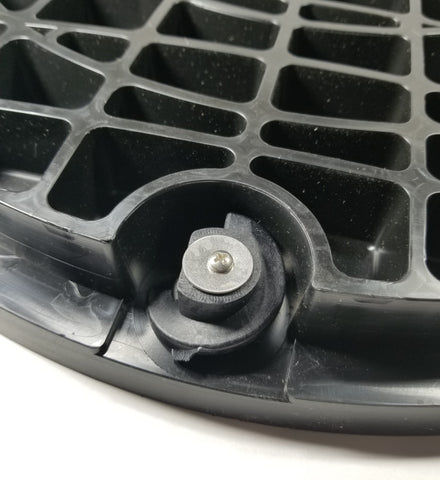

  • Brass Pentagon lock nut and plastic underside worm gear

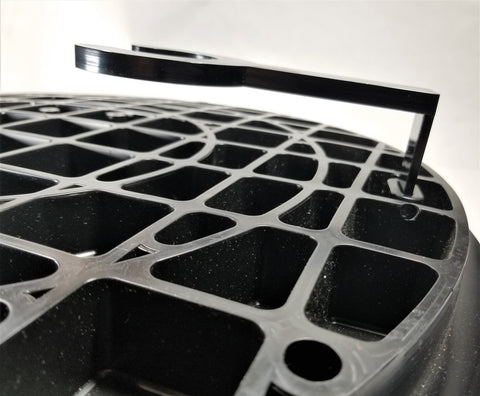

  • Can optionally use additional U-brackets under lid for compound meters or multiple meters in a large pit. (sold separately)
  • Antennas shown in photo not included shown as examples only.
    Approximate Measurements
    • Outer Diameter of top - 21-1/8""
    • Inner Diameter (bottom skirt) -  19-3/4" Fits 20" clear opening in Ford rings.
    • Thickness of top lip/flange 3/4"
    • Overall Thickness - 1-11/16"

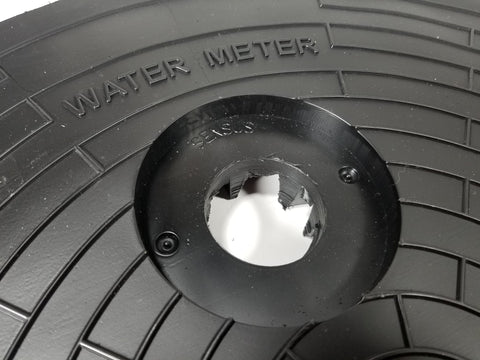

    Dimensions of Sensus/Generic AMR/AMI Hole Variation

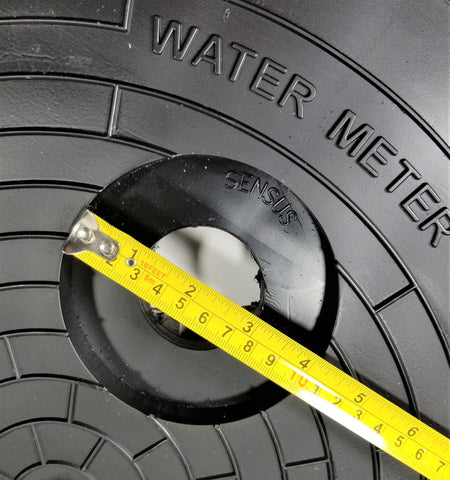

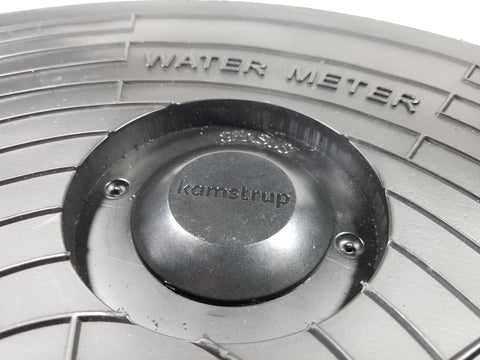

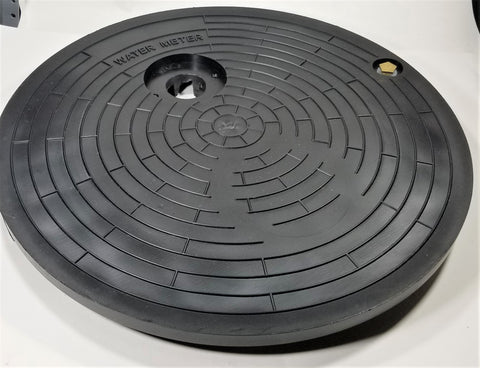

    This Version has a recessed through the lid AMR/AMI transmitter antenna hole to accommodate touch read pads, or Sensus AMR/AMI radio devices. It also accommodates several other manufacturer through the lid mounts such as Kamstrup AMR, Badger Orion, etc. The recess is approximately 4" diameter and 1/2" depth, with standard centered 1-3/4" through lid AMR/AMI antenna or touch read hole.

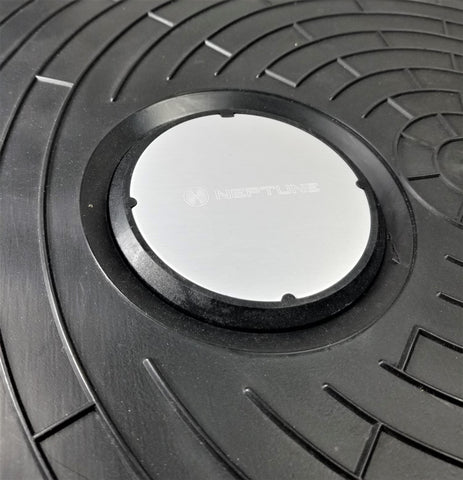

    Dimensions of Neptune R-900 Variation

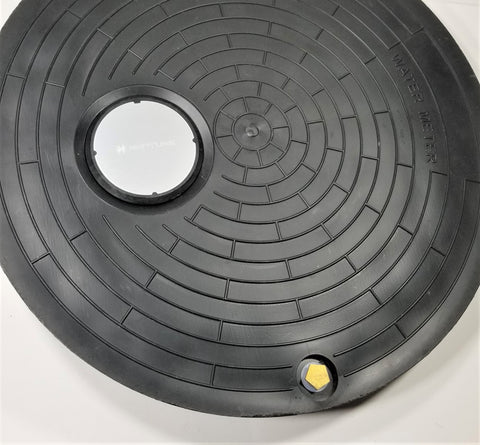

    AMR through the lid hole for mounting Neptune R-900 Transmitter antennas. Recess is 4-1/2" diameter and 7/16" deep to keep antenna level with top of lid. it has a 1-3/4" offset hole for the Neptune R-900. The Recess protects the transmitter from damage by mowers, snow plows, and vehicles. It also protects from potential trip hazard.

      Quantity Purchases - If you need a quantity of these covers, please contact us for pricing and shipping options.
