ZENNER

• AWWA C-708 Multi-Jet Type Magnetic Drive
• Cold Water Meters NITRO I
• Model Residential Ultrasonic

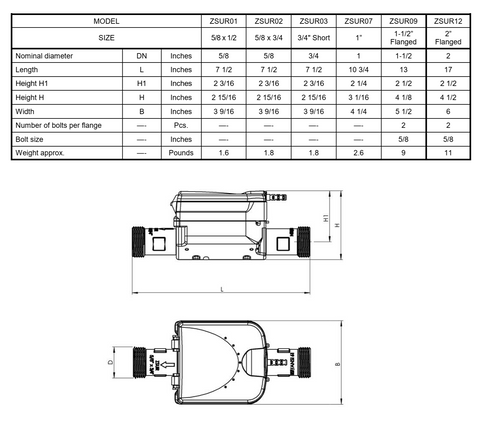

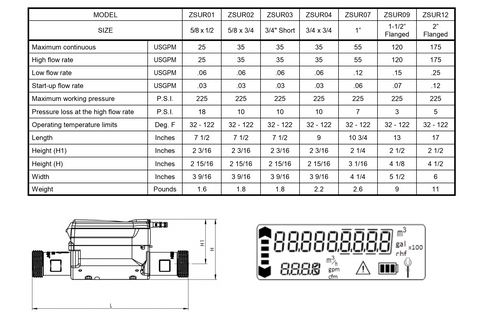

• Sizes:
  • 5/8" x 1/2" (ZSUR01)

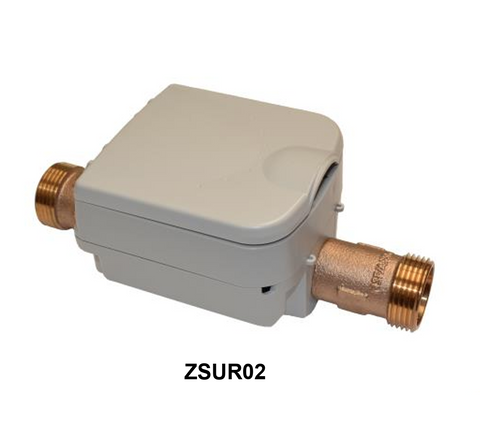

  • 5/8" x 3/4" (ZSUR02)

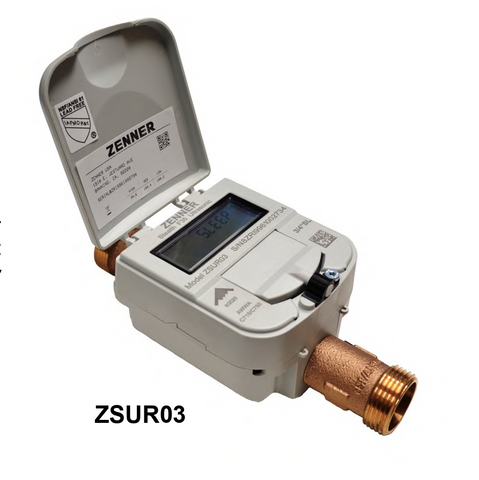

  • 3/4" x 7.5" short (ZSUR03)
  • 3/4" x 9" standard (ZSUR04)

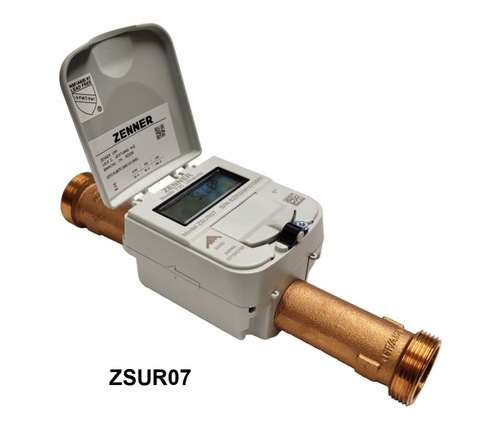

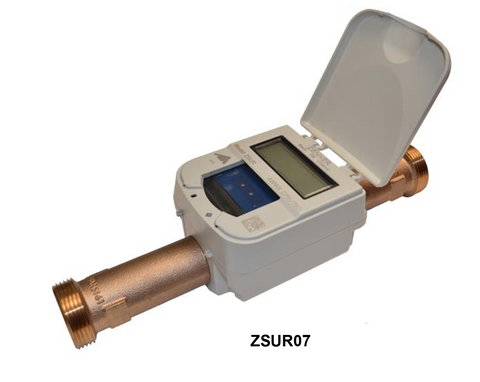

  • 1" (ZSUR07)

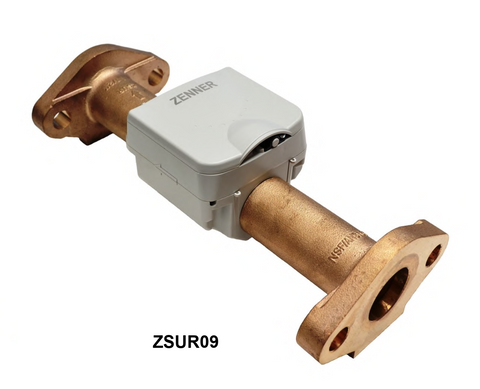

  • 1-1/2" Flanged ends (ZSUR09)
  • 2" Flanged ends (ZSUR12)
• Registration: US Gallons
• NFC output: Industry Standard Encoder Output with 5' cable
• Flow tube: No-lead Brass (NSF-61)
• Extra Cable (sold separately)

INTRODUCTION: ZENNER Ultrasonic Residential Meters are designed for applications where high accuracy, long life and a dynamic flow range is desired.  The highly advanced, all-digital technology achieves precise measurement without any moving parts, ensuring optimum revenue without compromised performance over time. These meters are used for the measurement of both potable and non-potable clean water in commercial and industrial settings and are capable of bi-directional flow measurement. The meter design has minimal head loss, decreasing pressure complaints from customers and reducing pumping costs for the utility. An industry leading sampling rate of 4 times per second, ensures you are picking up flow changes as they occur making the ZENNER Ultrasonic Residential Meter the most accurate ultrasonic meter in the industry. ZSUR03

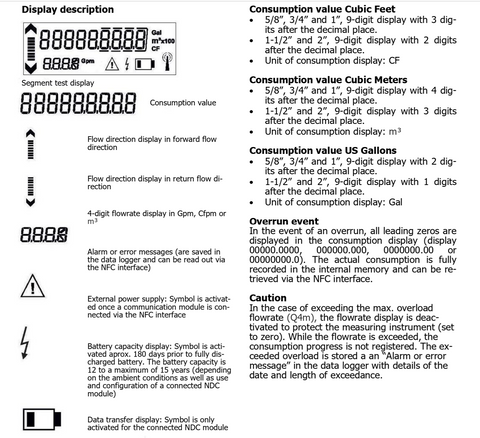

OPERATION: ZENNER Ultrasonic Residential Meters use solid state, sound measuring technology to measure instantaneous flow and calculate cumulative flow volume. The LCD display has two rows. The first row shows total volume, where it is factory programmed for US Gallons, Cubic Feet or Cubic Meters. The second row displays additional information such as rate of flow, flow direction, remaining battery life, leak alarms, empty pipe alerts, etc. These meters are capable of ultra precise leak registration with low flow sensitivity as low as .03 GPM.

CONSTRUCTION: ZENNER Ultrasonic Residential Meters consist of three basic components: The tube, electronics & display package, and two transducers.  The tube is made of lead free bronze (NSF-61).

COMMUNICATION: ZENNER Ultrasonic Residential Meters have a universal communication protocol package capable of producing outputs compatible for use with Encoded systems. These meters are designed to be connected to any existing AMR/AMI system.

MAINTENANCE: ZENNER Ultrasonic Residential Meters are engineered and manufactured to provide long-term service and operate virtually maintenance free.  There are no moving parts to service. The battery pack has a standard life-time of up to 12 years and is designed for easy user replacement. It does not require a return to a ZENNER facility for replacement.

CONFORMANCE: ZENNER Ultrasonic Residential Meters are tested and comply with AWWA Standards C715 and C750. These Meters comply with the lead free provisions of the Safe Drinking Water Act and are certified to NSF/ANSI Standards 61 and 372.

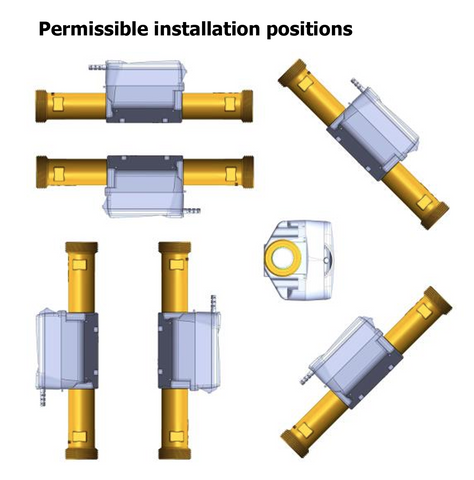

INSTALLATION: ZENNER Ultrasonic Residential Meters are designed to fit the same laying length as most standard multi-jet and positive displacement meters. With no moving parts to damage, these meters can be used safely and accurately with or without a strainer. These meters are submersible and exceed IP68 standards. These meters can be installed in any position, including horizontal and vertical.

CONNECTIONS: These meters have been designed with ease of installation in mind through the use of built-in wrench pads on meter sizes 5/8” through 1”.  Tailpiece/Unions for installations of meters are available as an option for various pipe types, sizes, and misaligned pipes.  Sizes 5/8" through 1" have male AWWA meter threads. Sizes 1-1/2" and 2" have 2 bolt elliptical Flange ends.
