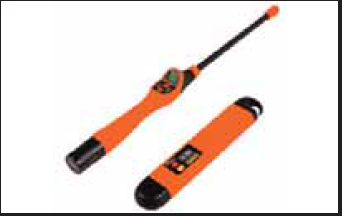

Copperhead ViperMag Combo Pipe & Cable Locator and Metal Locator
Combination Pipe & Cable Locator and Magnetic Valve/Meter/Curb Box Locator

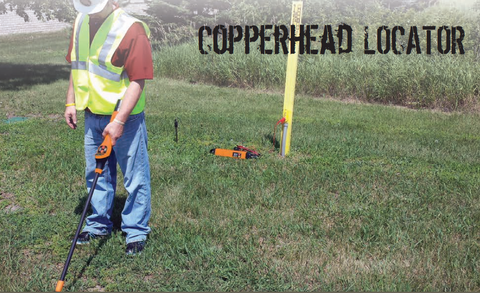

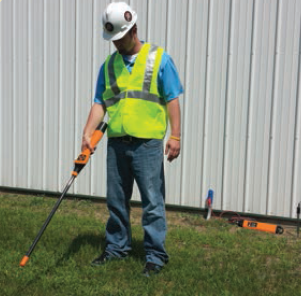

ViperMag is the only pipe and cable locator in it’s class that combines active locating frequencies with a ferrous metal detector in one device. This streamlines the locating process by eliminating the need for an operator to carry two devices in the field. ViperMag is the perfect tool for municipalities and utility locators.
Locate metallic pipe (Iron, Steel, Copper, Brass, Lead) with the 3 frequency pipe locating modes, as well as tracer wire, or other metal wire and cable. The transmitter works in both active conductive direct connect mode, or from above the pipe or wire in inductive mode. An optional inductive signal clamp is available for shielded and insulated cables. Locate buried metal such as valve boxes, curb boxes, meter box covers, and manhole lids with the ferrous metal locating mode.
Economical. Straight Forward.
With a user friendly menu, ViperMag is very simple to use. Equipped with a 1-watt transmitter and useful frequencies to locate underground utilities, the transmitter can be used in a direct connect application or inductive if a direct access point isn’t available. In direct connect applications the available frequencies are 512 Hz, 8.19 kHz, 83 kHz. A passive power 60 Hz frequency is available for detecting the presence of active power cables, and push-button depth will tell you the approximate depth of the utility. ViperMag’s ferrous metal detector is a highly sensitive and discriminating instrument designed to locate magnetic and ferrous materials while rejecting non-magnetic material such as aluminum cans or foil wrappers. All of this in one device at an affordable price.
- Intelligent range of active frequencies – 512 Hz, 8.19 kHz, 83 kHz
- Find active power cables with 60 Hz passive
- Conductive or Inductive locating
- Ferrous metal detector
- Push-button depth
- Easy to use – simple menu
Not only is it economical, but it's compact as well for easy storage in the cab of a pickup truck. In the soft case the dimensions are only 4" x 6" x 46". With the optional hard case, the dimensions are 5" x 14" x 53".

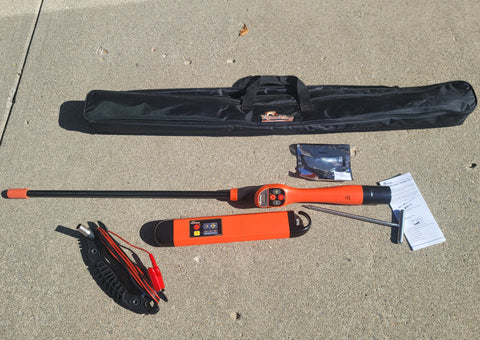

ViperMag Locator Includes:
- Receiver (3 active locating frequencies modes, 60 Hz passive live power line mode, Ferromagnetic metal detector mode)
- Transmitter (3 Frequencies, plus fault finding) with conductive cable and winder, and nylon shoulder strap
- Stainless Steel Grounding Stake

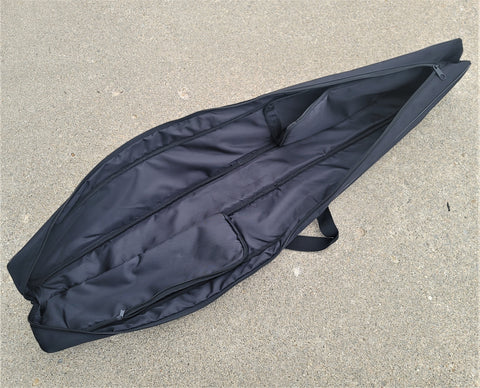

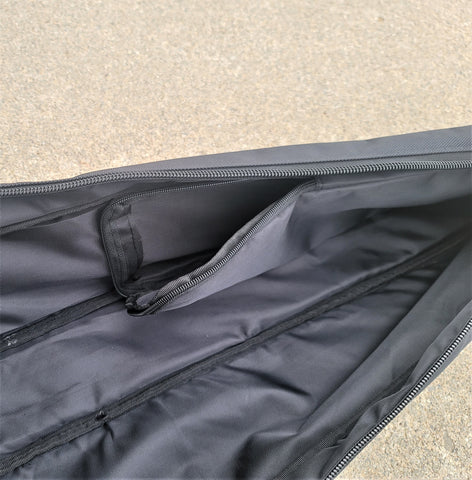

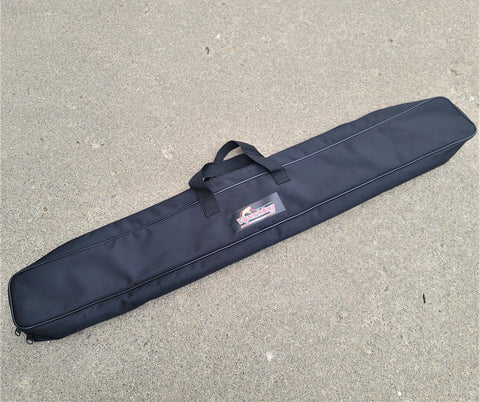

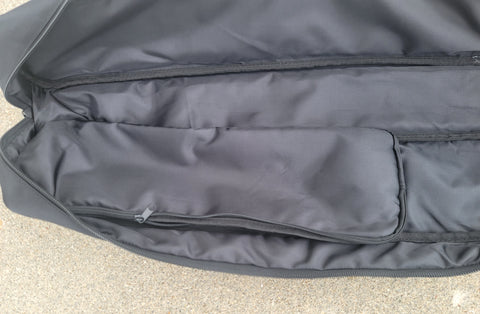

- Nylon Carry/Storage Bag
- Instruction Reference Card
- 1 Year Manufacturer's Warranty

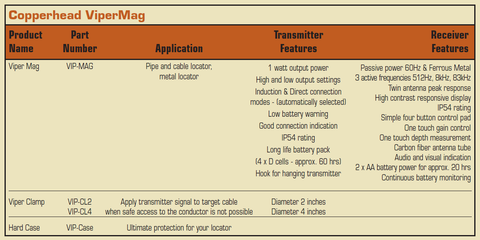

|Transmitter Specification:||Receiver Specifications:|
If your quantity ordered doesn't show as in stock, please allow 5-10 business days for delivery.

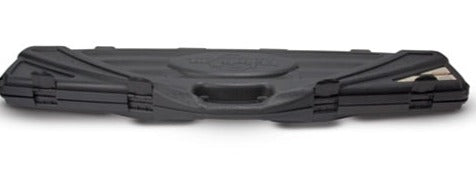

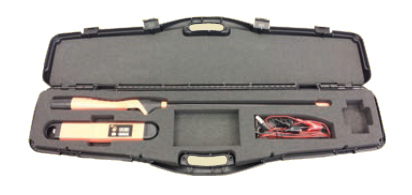

- Custom cut foam lined hard carry case with carry handle

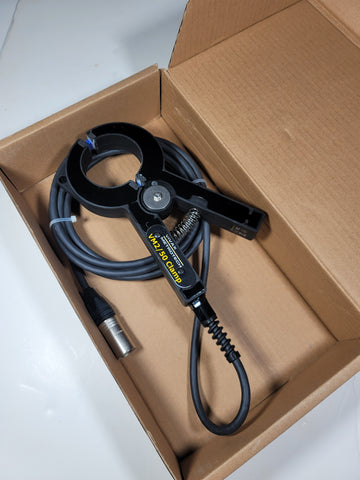

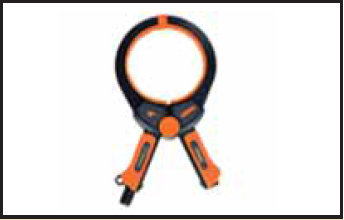

- 2" Signal Clamp (Special Order - Contact us)

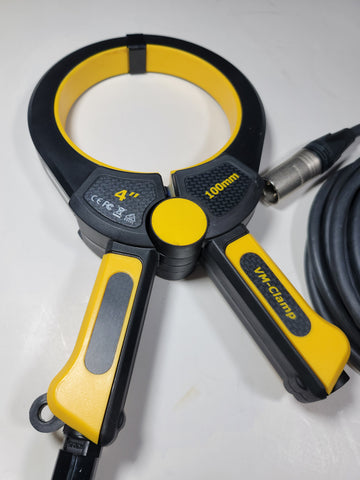

- 4" Signal Clamp (Special Order - Contact us)
- Classroom and field training is also available. Contact us for details and to schedule. In most cases we can do training at your site.
